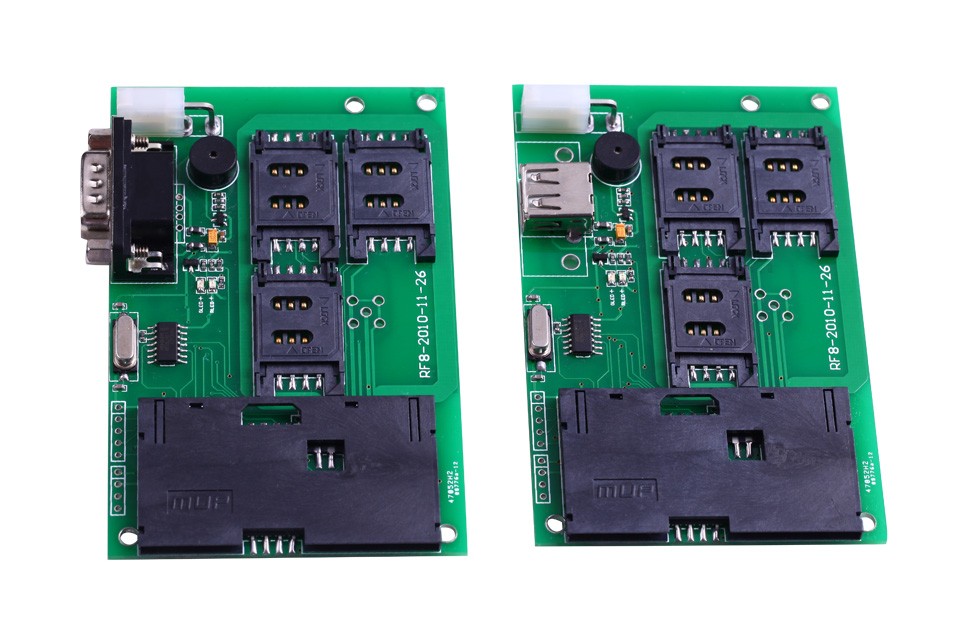

RDM208 13.56Mhz Payment Module

RDM208 is a dual interface read-write module that reads and writes in accordance with ISO14443A, ISO7816 standard contact/contactless card, and realizes the connection with PC and embedded devices via USB port or RS232 interface. Provides a variety of platform driven development packages, with the accompanying demo program implementing all the functions of access cards.

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

RDM208

Frequency

13.56MHz

Standard

ISO/IEC14443-A;ISO7816

Baud Rate

9600-115200bit/s( configurable, default 15200)

Interface

RS232USB-UART(with dirver), USB-HID(without dirver)

Supporting Card

Mifare S50/S70/ultralight,MifarePro,

contact & contactless CPU card

PowerSupply

5V

Current

<150mA

Read Distance

0-10cmDepending on label size

Operating Temperature

-10 ~ 70

Sheathing  Material

ABS

Dimension

104*67*9mmInternal Antenna
