125Khz RFID module

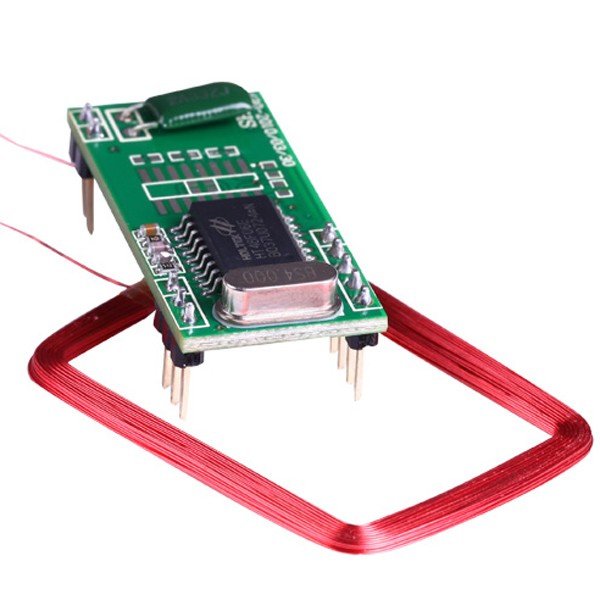

RDM630 is a 125KHz read-only module for EM4100/TK4100 125KHz cards, which can read and output CSN card number. It has option of Wiegand26, RS232 and TTL output format.

Close
RDM829series reader-writer is a contactless smart card reader developed on the basis of the ISO/IEC14443 -1, -2, -3, -4 and ISO15693 international standard protocols. It integrates high safety and economy into a whole and integrates high anti-interference ability, small size and more stable performance, is easier to use and is widely used in telecommunications, industry and commerce, tax administration, banking, insurance, city card, bus and other toll collection, stored value, enquiry and other smart card application fields. It can be compatible with domestic general reader-writers.
Phone:000-000-0000

RDM630

Frequency

125KHz

Interface

Wiegand26, TTL, RS232

Supporting Card

EM4100/TK4200/EM4200 Card

PowerSupply

Wiegand26, TTL, RS232

Read Distance

0-10cmDepending on label size and antenna technology

Antenna

external ,Variety of optional specifications

Operating Temperature

-10 ~ 70

Dimension

39mm *19mm * 9mm

Weight

0.4kg / 100pcs


Features

· Supports  125 KHz

· EM4100,EM4550,NXP  Hitag  1,2,hitag1/2/S

· CSN card read only



Application:

· Access Control

· Table PC

· Lift Control

· POS Terminal

· Parking System

· Industrial Automation

· Attendance Application
