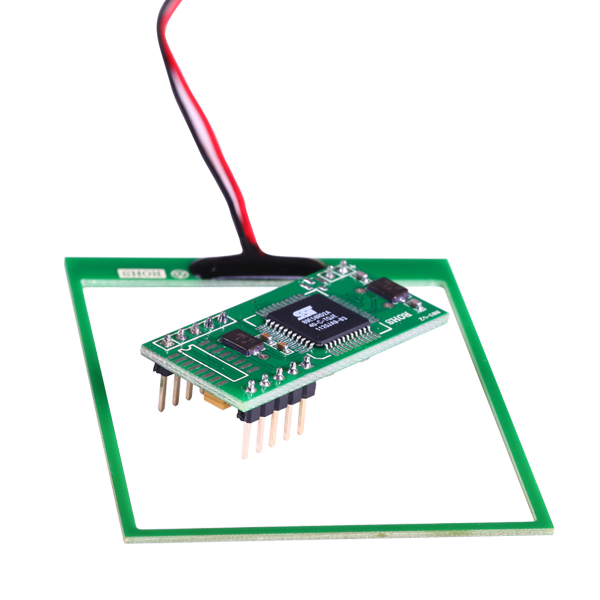

13.56MHz RFID module

RDM880C Series module is a contactless smart card reading and writing module developed based on ISO/IEC14443 -1, -2, -3, -4 and ISO15693 international standard protocols. It adopts highly integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size and more stable performance.

Close
RDM829series reader-writer is a contactless smart card reader developed on the basis of the ISO/IEC14443 -1, -2, -3, -4 and ISO15693 international standard protocols. It integrates high safety and economy into a whole and integrates high anti-interference ability, small size and more stable performance, is easier to use and is widely used in telecommunications, industry and commerce, tax administration, banking, insurance, city card, bus and other toll collection, stored value, enquiry and other smart card application fields. It can be compatible with domestic general reader-writers.
Phone:000-000-0000

RDM880C

Frequency

13.56MHz

Read-write Chip

RF632

Baud Rate

9600-115200bit/s(Configurable , default 9600)

Interface

TTLRS232RS485customizable USBABA )

Supporting Card

Mifare S50/S70/UltralightMifare Pro

AT88RF02066CL160SSR176

SRIX4KI-code 2TI RFID Tag-it HF-I

PowerSupply

5V or 3.3V

Current

< 70mA

Read Distance

0-14cmDepending on label size and antenna technology

Antenna

external ,Variety of optional specifications

Operating Temperature

-10 ~ 50

Storage Temperature

-20 ~ 80

Dimension

39mm *19mm * 9mm

Weight

0.4kg / 100pcs


Application:

· Attendance machine

· Medical Electronic Equipment

· Identification card scanner

· Hand-held intelligent terminal
