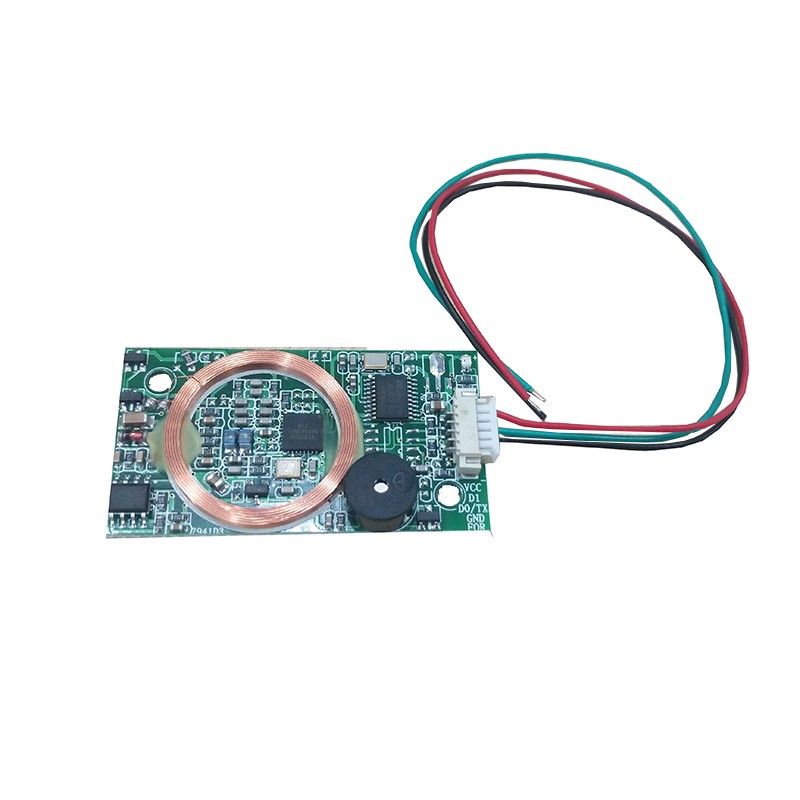

RDM887 125Khz 13.56Mhz Rfid Module

RDM887 is a dual frequency module supports 125KHz & 13.56Mhz read-only module.It has buzzer and double color led for prompt,with optional interface ofWG26/34,TTL and USB-HID which is widly used for access control system,time attendence and fingerprint device.

产品资讯

RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.

Phone：000-000-0000

Detailed information
Specification

RDM887
Frequency	125KHz & 13.56MHZ
Standard	ISO14443A/B,ISO15693
Supporting Card	EM4200,Mifare S50 Mifare Desfire,Ultralight Card,HID Iclass,Sony Felica Card
Interface	TTL/Wiegand26/34/USB-HID/RS232/RS485
Power Supply/Current	5V/12V
Read Distance	3-8cm（Depending on tags size and surroundings）
Antenna	Built-in
Operating Temperature	-20℃~ 70℃
Dimension	47mm 26mm 5mm

Module NO.	Interface
RDM887-T-1	TTL,HEX
RDM887-T-2	TTL,ASCLL
RDM887-W	Wiegand26/34
RDM887-H	USB-HID
RDM887-U	USB-UART

Features：

· Support 125Khz &13.56Mhz

· Support EM4100/EM4200

· Support ISO14443A/B/C

· Support HID iClass

· Support Sony Felica

· Mifare S50/Desifre/Ultralight

· CSN card read only

Application:

· Access control

· Time attendence system

· Fingerprint system
