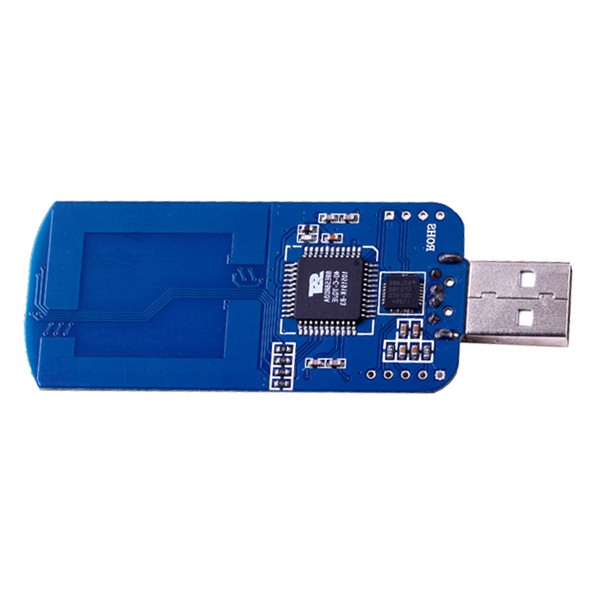

RDM829 13.56MHz USB Module

RDM829 series reader-writer is a contactless smart card reader developed on the basis of the ISO/IEC14443 -1, -2, -3, -4 and ISO15693 international standard protocols. It integrates high safety and economy into a whole and integrates high anti-interference ability, small size and more stable performance, is easier to use and is widely used in telecommunications, industry and commerce, tax administration, banking, insurance, city card, bus and other toll collection, stored value, enquiry and other smart card application fields. It can be compatible with domestic general reader-writers.

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

RDM829

Frequency

13.56MHz

Standard

ISO/IEC 14443-A/BISO/IEC 15693

Interface

USB-UART(with driver) / USB-HID (without driver)

Supporting Card

Mifare S50/S70/UltralightMifare ProAT88RF02066CL160SSR176 SRIX4KI-code 2TI RFID Tag-it HF-I

PowerSupply

5V

Read Distance

0-10cmDepending on label size

Indicate

1xLED indicator lights

Operating Temperature

-10 ~ 70

Dimension

81mm * 30mm* 5mm

Weight

0.8kg / 100pcs


Model Description:


Model No.



Interface



Standard



RDM829-H-A



USB-HIDwithout driver



ISO14443A



RDM829-H-C



USB-HIDwithout driver



ISO15693



RDM829-H-E



USB-HIDwithout driver



ISO14443A&B+15693



RDM829-U-A



USB-UARTwith driver



ISO14443A



RDM829-U-C



USB-UARTwith driver



ISO15693



RDM829-U-E



USB-UARTwith driver



ISO14443A&B+15693


Application:

· Piles

· Access control

· Online banking

· Shopping online

· Internet security

· Software locking

· Digital signature

· Customer bonus point preferential plan

· E-wallet recharge and balance enquiry

· Stored valuesocial insuranceticket businessbanktax administration

· Industry and commercetelecommunicationspostal servicecomputer security management
