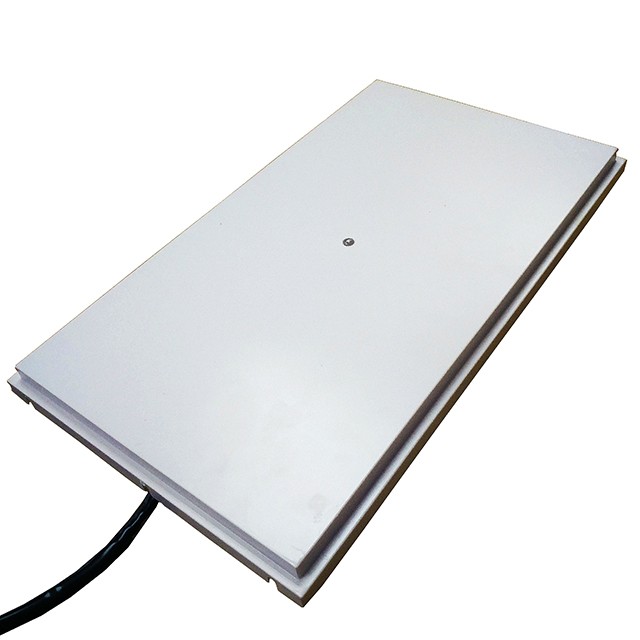

10 meters UHF Reader

The RDM8902 RFID Reader is a new and innovative antenna built-in integrated RFID Reader that is compatible with IS018000 and EPC Class 1 Gen2 of RFID tags. It solves many problems successfully associated with remote identification, identification of fast moving objects and multi-card identification for The Passive RF tag. This RFID Reader’s design includes a Weigand port, a RS485 port and a RS232 output interface.

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

RDM8902

Standard

ISO18000-6B/ISO18000-6C/EPC Class1G2

Working frequency

902928 MHz or 865~868MHZ

Interface

Wiegand26\34\42,RS485,RS232 ( TCP/IP,WIFI and GPRS is customizable)

Antenna

10dBi circular polarization

Read range

10-12M

PowerSupply

DC-7.5-12V,3A

Development Kit

Provide SDK development kit, and C#, C++,Java routines

Antenna power

1W (adjustable by software)

Operating Temperature

-45℃ ~ 65

Input/output interface

1 way trigger input or 2 way replay output (customized)

Ani-thunder

6000V

Size

420*240*30mm

Weight

3.6kg


Model Description

RDM8902-A

865-868Mhz/902-928Mhz, WG26/34,RS232,RS485

RDM8902-A-W

865-868Mhz/902-928Mhz,WIFI

RDM8902-A-T

865-868Mhz/902-928Mhz,TCP/IP

RDM8902-A-G

865-868Mhz/902-928Mhz,GPRS


Features

· ISO18000-6B/ISO18000-6C/EPC Class1G2

· 3-25M reading range for option

· Wiegand26\34\42,RS485,RS232 ( TCP/IP,WIFI and GPRS is customizable)

· SDK for C#, C++,Java routines

· LED indicator light and a buzzer


Application:

· Transportation management

· Vehicle management Guest Registration System

· Road and bridge toll

· Custom management

· Warehouse management

· Car parking management

· Production management

·  Access control management
