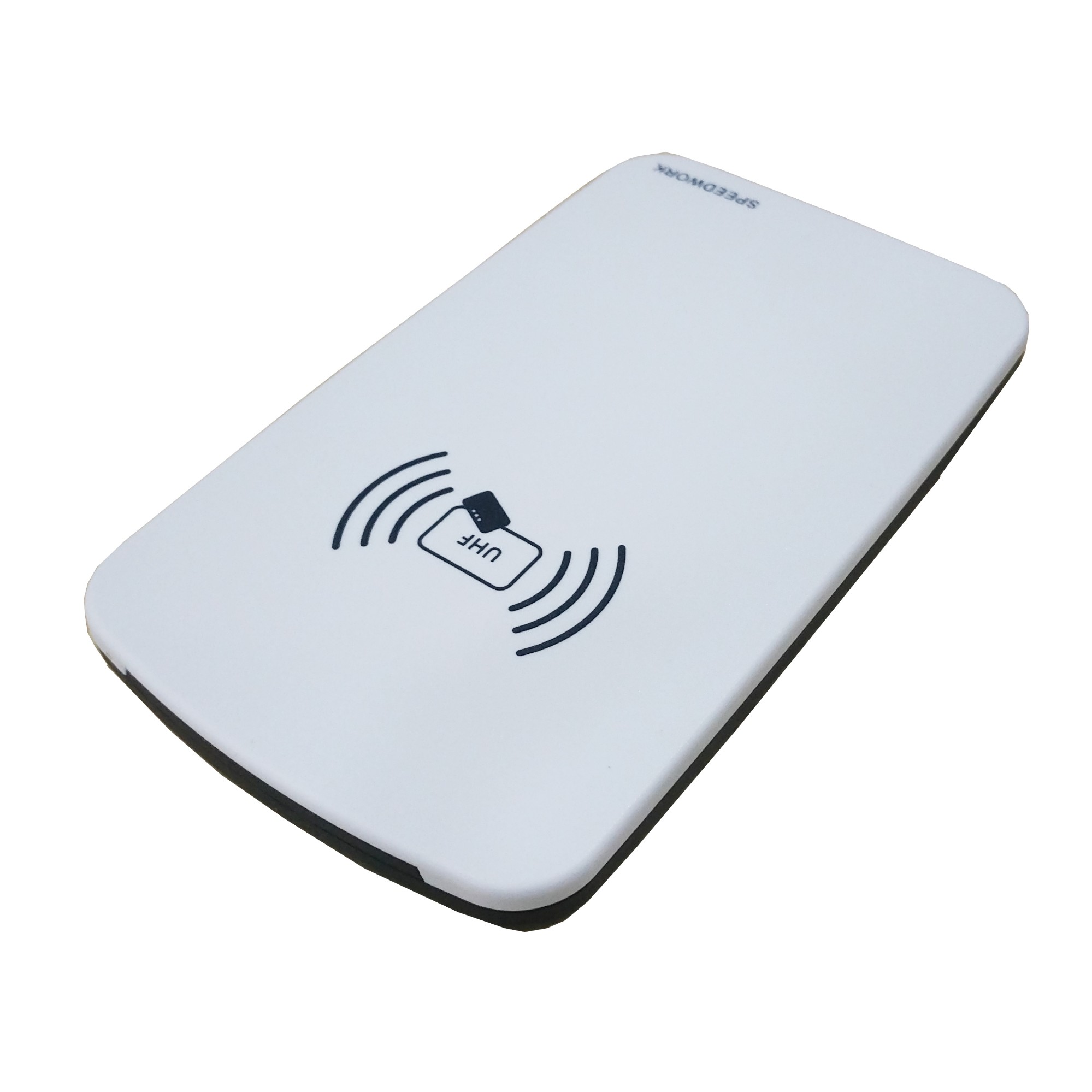

UHF USB Reader

The reader is compatibility with few protocol, easy portable, high speed of read/write, can using in every RFID system.

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

RDM8903

Frequency

902~928 MHz or 865~868MHz

Antenna gain

3dBi circular polarization

Protocol

ISO18000-6C(EPC C1 GEN2)

Communication port

Left USB to serial port / Right USB to keyboard input

Software & SDK

DEMO and C#, VC, VB, Java, DELPH, etc.,

Encryption

Can be directly encrypted, copy prevention.

Reading range

Stable reading 60~80cm

Writing range

Stable writing 0~10cm

Operating Temperature

-10 ~ 70

Power

USB

Output power

0~18±1dBm

Working temperature

-20~+75

Storage temperature

-40~+85

Item size

120x78x28mm

Package size

180x120x50mm

Net weight

200g

Shell material

ABS
