Access control solution

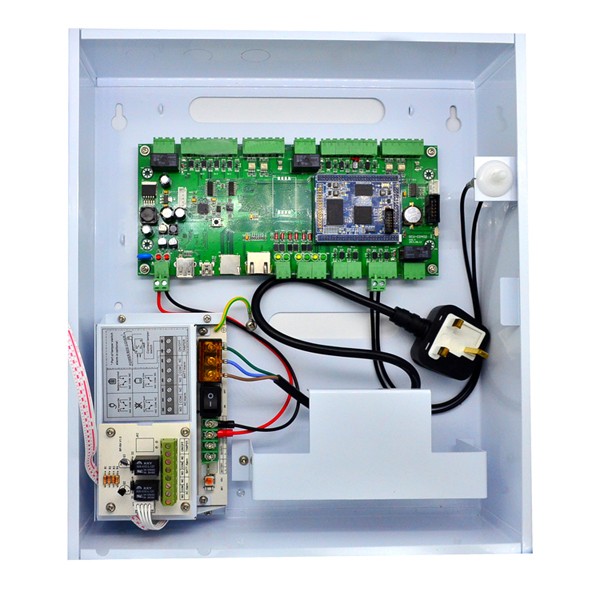

RDM Web Based Access Controller adopting the latest web design technique to develop and is embedded with web-server engine. The controller is easy-to-install and its build in browser interface is simple to use so that user do not required specialize training. It is ideal application for small to large sized commercial buildings.

RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.

Phone：000-000-0000

	C2	C4	C2i	EIO1	EIO2
Function	2 door	4 door	2 door integrated	Expansion IO board	Expansion IO board
Operation	Via browser			-	-
Connection	TCP/IP(100M), (RS485 optional)			RS485	RS485
Supported User & Events	100,000, 100,000
Tamper Switch	1			1	1
Antipassback	Supported
Interlocking	Supported
Zone Counting	Supported
Inter-Control Program	Supported
Support Reader Type	Wiegand, RS485 (optional), TCPIP (optional)			-	-
Reader nos.	2	4	2	-
Door Input points	8	8	8	-
Door Output points	2	4	2	-
Aux Input(supervised)	4	4	4	-
Aux Out	1	1	1	-
Device Input points	-	-	14	14	28
Device Output points	-	-	12	12	24
Security / Encryption	SAM, AES256(optional)			-	-
Enhancement	TF card, USB port, RS485 port			-	-
Power	AC90v ~ 230v
Operating Temperature	-10℃ ~ 50℃
Dimension	340310mm80mm			300250mm90mm
Weight	4.3kg	4.5kg	4.5kg	3.3kg	3.5kg
Material	Metal Plate

Features：

·User-friendly graphical UI with navigation menu.

·2 door base controller.

·Stacking module S01 to be a C4 (4-door controller).

·Stacking module S02 to be a c2i (2 door integrated IO controller).

·Expandable (via RS485 connection to any controller) to 5 EXP-IO panel to create upto 140 supervised inputs and 120 relay outputs.

·Support FTP download and upload.

·Support Http Protocol

·Expandable for WIFI connection

Application:

· Door Access management,

· Lift Control management,

· Railway inspection
