RDM65X0 125Khz Rfid Reader

RDM65X0 series is a contactless 125KHz contactless card reader that read the card’s serial number.RDM65X0 series adopts advance 8-bit microprocessor technology. It build-in with watch-dog and voltage monitoring circuitry to ensure reliable operation.RDM65X0 series come with various aesthetic look to suit different user and applications. Its output to the controller can communicates through Wiegand, ABA, RS232 or RS485 interface. It read only card serial number to output.

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

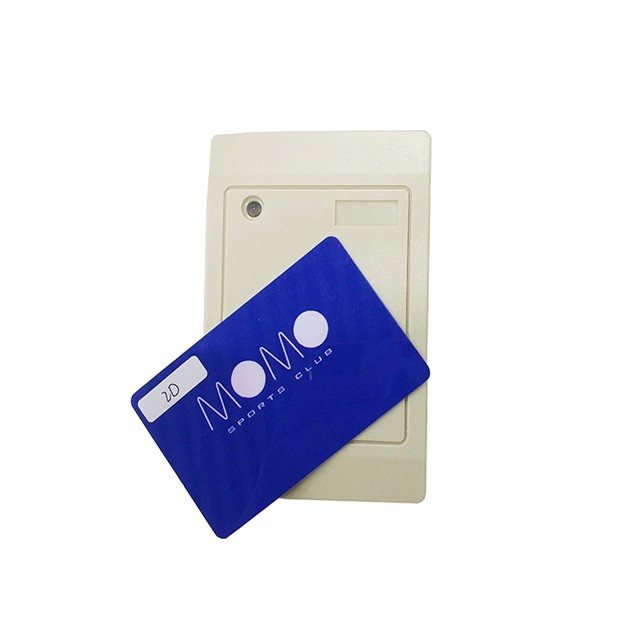

RDM6510

RDM6520

RDM6540

RDM6560

RDM6580

RDM6590

Frequency

125KHz

Support Standard

EM4100 &EM4200 & compatible cards

Interface

Wiegand /RS232 / RS485 /ABA

Read Distance

20-50mm (depending on card/tag)

Power Supply

DC 9V ~ 12V(±5%)

Current

<60mA

Operating Temperature

-10~50

Storage Temperature

-20~80

Humidity

0 ~ 95%

Storage Temperature

-20℃ ~ 80℃

Dimension (mm)

111*70*14

80*43*13

118*76*22

105*47*23

122*75*20

122*45*20

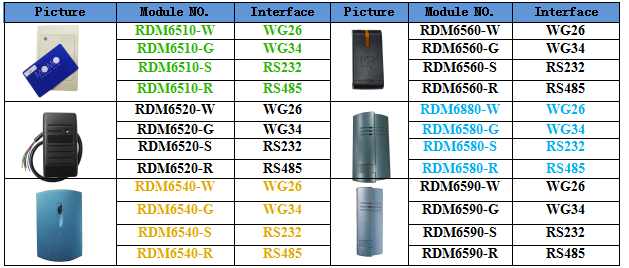

Model Description:



Connection definition

Wiegand 26/34

RS232 / RS485

RED

DC9~12V

RED

DC 9~12V

BLACK

GND

BLACK

GND

GREEN

DATA 0

GREEN

TX(RS232)/A+(RS485)

WHITE

DATA 1

WHITE

RX(RS232)/B(RS485)

BROWN

HOLD

BROWN

NC/NC

BLUE

LED(Touch Down)

BLUE

LED( Touch Down)/NC

GREY

BUZZER(Touch Down)

GREY

BUZTouch Down/NC

YELLOW

NC

YELLOW

NC/NC


Features

· Read-only M1 and compatible card serial number

· prevent damage ,wind /rain protection, encapsulated in epoxy resin, can be installed in a variety of indoor and outdoor environments.

·  A built-in speaker and LED lamp indicating system/card reader status.

· accepts a voltage of 9~ 12 dc (optional 5V power supply), which can be used in conjunction with almost all controllers on the market.



Application:

· Access control Attendance

· Ladder control

· Parking lot

· Barrier gate/ rapid-open gate/Brake

· Membership management

· A digital signature

· One-card system

· Production process management
