Waterproof 13.56Mhz Rfid Reader

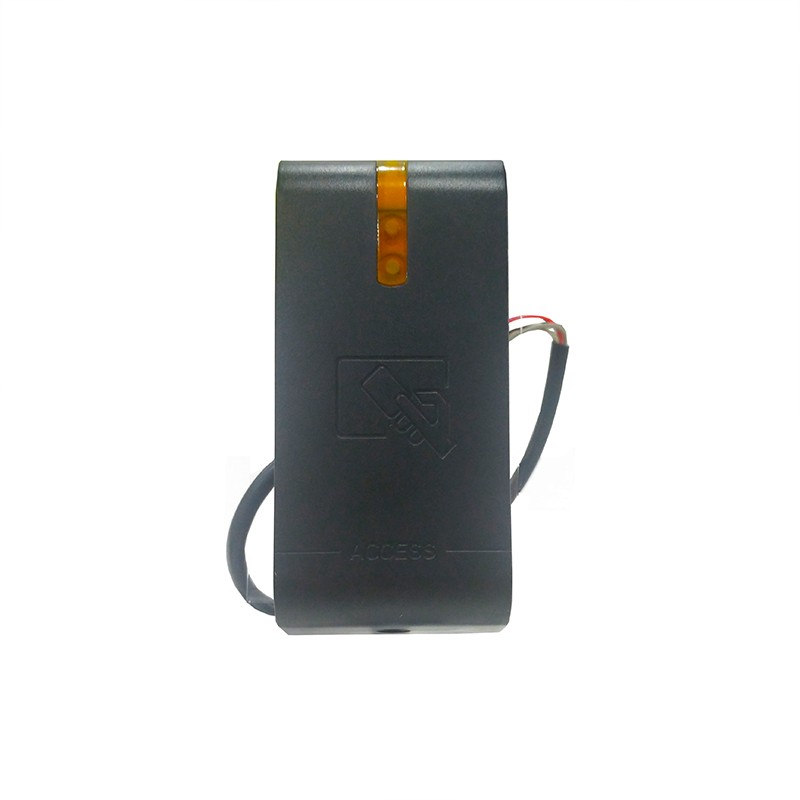

RDM85X0 is 13.56MHz wall-mounted card reader of RDM's read-only M1 card serial number with high performance and multiple output formats.he standard wiegand26/34 and RS232 output format interfaces are provided, which can be used in various RFID systems and can be used in conjunction with other company products.

RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.

Phone：000-000-0000

	RDM8510		RDM8520	RDM8540	RDM8560	RDM8580	RDM8590
Frequency		13.56Mhz
Support Standard		Mifare S50/S70/F08/Desfire Card
Interface		Wiegand /RS232 / RS485 /ABA
Read Distance		DC 9V ~ 12V(±5%)
Power Supply		<50mA
Current		＞100m Using the national standard Cat5e network cable, test results without interference
Operating Temperature		IP65 epoxy resin embedment
Storage Temperature		-10℃ ~ 70℃
Humidity		-20℃ ~ 80℃
Storage Temperature		0 ~ 95%
Dimension (mm)		1054723mm	804313	1187622	1054723	1227520	1224520

Model Description:

Connection definition：

Features：

· Read-only M1 and compatible card serial number

· prevent damage ,wind /rain protection, encapsulated in epoxy resin, can be installed in a variety of indoor and outdoor environments.

· A built-in speaker and LED lamp indicating system/card reader status.

· accepts a voltage of 9~ 12 dc (optional 5V power supply), which can be used in conjunction with almost all controllers on the market.

Application:

· Access control Attendance

· Ladder control

· Parking lot

· Barrier gate/ rapid-open gate/Brake

· Membership management

· A digital signature

· One-card system

· Production process management
