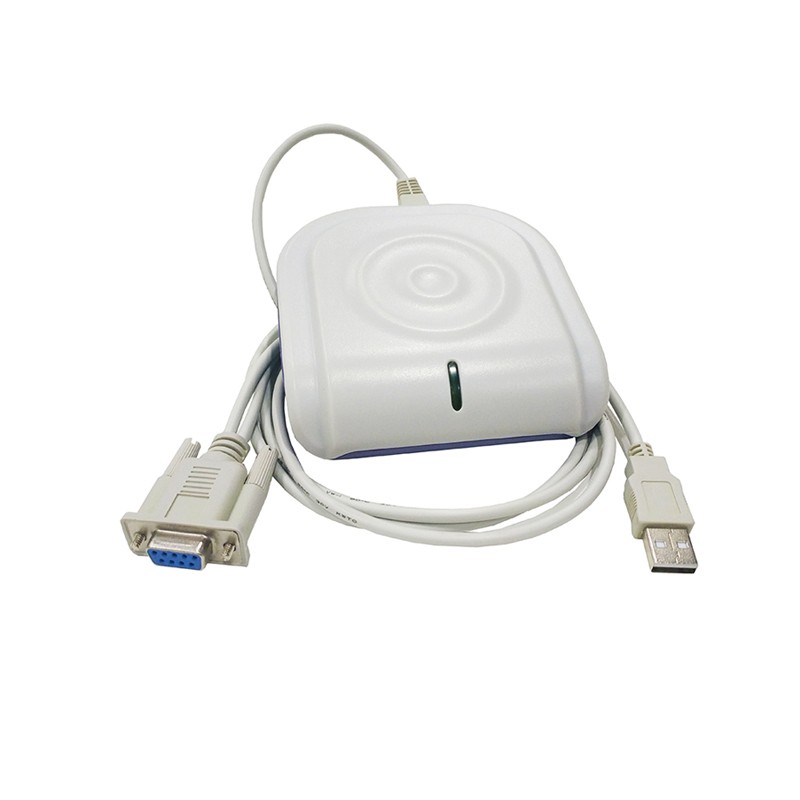

13.56Mhz NFC RS232 Rfid Reader

RDM530-S-N is a NFC reader that supports ISO14443A/B and ISO18092 standard.Through RS232 serial interface to realize the connection with PC and related equipment.The driver development kit of various platforms is provided at random, and the attached demo program realizes all the functions of access rf card.

产品资讯

RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.

Phone：000-000-0000

Detailed information
Specification

RDM 530-S-N
Frequency	13.56MHz
Standard	ISO/IEC 14443-A/B, ISO 18092
Supporting Card	P2P mode, NFC read-write mode, ntag203/213/215/216, Mifare S50/S70/Ultralight, Sony C Felica, CPU card, etc.
Interface	RS232
PowerSupply	5V
Read Distance	0-8cm（Depend on tags）
Baud Rate	9600-115200bit/s(Configurable, default 9600)
Operating Temperature	-10℃ ~ 50℃
Sheathing Material	ABS
Dimension	10010027mm
Weight	220g

Features：

· Support P2P functions and NFC

· ISO14443A/B, Sony C Felica

· USB, RS232 interface

· Supports contactless CPU card operation.

· A buzzer and 2xLED indicator lights

Application:

· Access control /Time attendance

· Production authentication

· Guest registration system

· System login/logoff

· Returnable transit items

· Logistic systems

· Express parcel management
