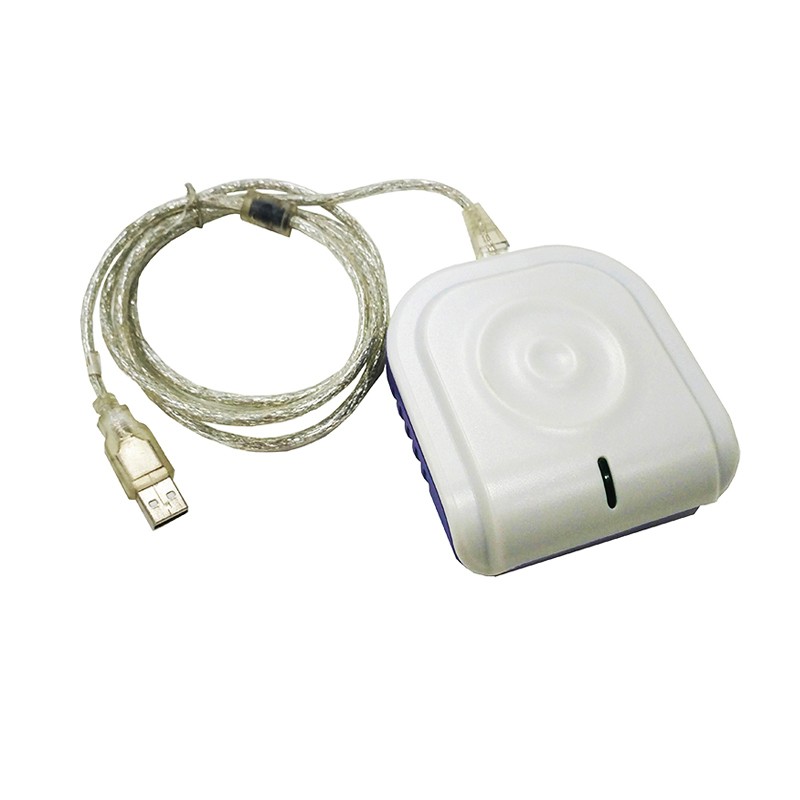

13.56Mhz NFC USB Reader

RDM530-U-N is a NFC reader that supports ISO14443A/B, ISO18092 standard.Connect to PC and related equipment via virtual U port.The driver development package of various platforms is provided at random, and the accompanying demo program implements all the functions of accessing the radio frequency card.

RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.

Phone：000-000-0000

RDM530-U-N
Frequency	13.56MHz
Standard	ISO/IEC 14443-A/B, ISO 18092
Supporting Card	P2P Mode, NFC Read-Write Mode, Ntag203/213/215/216, Mifare S50/S70/ Ultralight, Sony C Felica, CPU card
Interface	USB-UART(with drive)
PowerSupply	5V
Read Distance	0-8cm（Depending on label size and antenna technology）
Baud Rate	9600-115200bit/s(Configurable, default 9600)
Operating Temperature	-10℃ ~ 50℃
Shell Material	ABS
Dimension	10010027mm
Weight	0.21 KG

Features：

· Support 13.5MHz Frequency

· ISupport for P2P function,

· Support for reading and writing NDEF data (NFC format data)

· Support iso 14443A/B, Sony C Felica standard

· Support for non-contact CPU card operation

· A buzzer and a two-color LED indicator light

Application:

· Attendance/Guest/ Membership Management

· Network Security

· Digital Signature

· Software Lock

· Production Process Management

· Computer Security Management

· Customer Bonus Points Scheme

· Electronic Wallet Recharge and Balance Query

· Stored-Value，Social Security,Ticket Service,Bank, Tax, Commerce, Industry, Telecommunication, Postal
