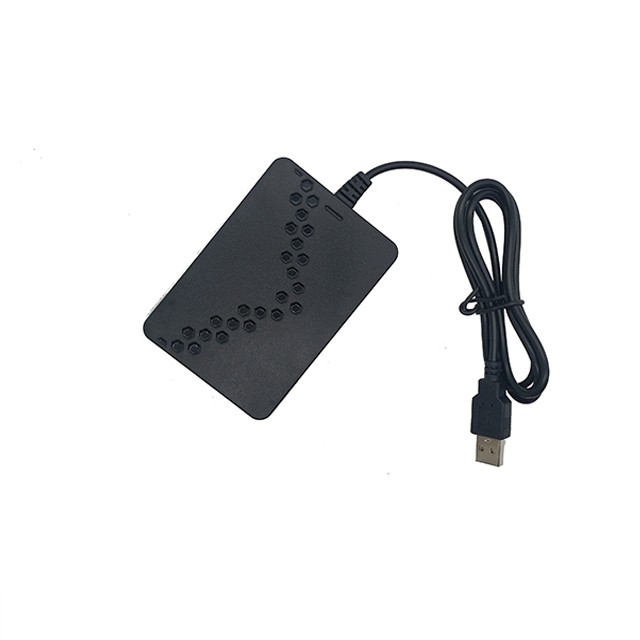

RDM582 125Khz 13.56Mhz USB Reader

RDM582-H-MFrequency125KHz&13.56MHzSupporting CardEM4100,EM4200  Mifare S50 / S70 InterfaceUSB-HID Output data8H-10D (default)USB cable length1.2 mSheathing MaterialABSOperating Temp

Close
RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.
Phone:000-000-0000

RDM582-H-M

Frequency

125KHz&13.56MHz

Supporting Card

EM4100,EM4200  Mifare S50 / S70

Interface

USB-HID

Output data

8H-10D (default)

USB cable length

1.2 m

Sheathing Material

ABS

Operating Temperature

-10  ~ 50

Dimension

90mm*66mm*15mm

Weight

0.07 kg


Features

· Non-drive USB mode, plug and play

· Support read-only EM4100 card serial number

· Support read-only Mifare S50 and S70 card serial number

· A buzzer and A LED indicator light

· Output data format optional (default 8H-10D)



Application:

· Access Control Attendance

· Membership Management

· Network Security

· Digital Signature

· Software Lock

· Production Process management

· Computer Security Management

· Customer Bonus Points Scheme
