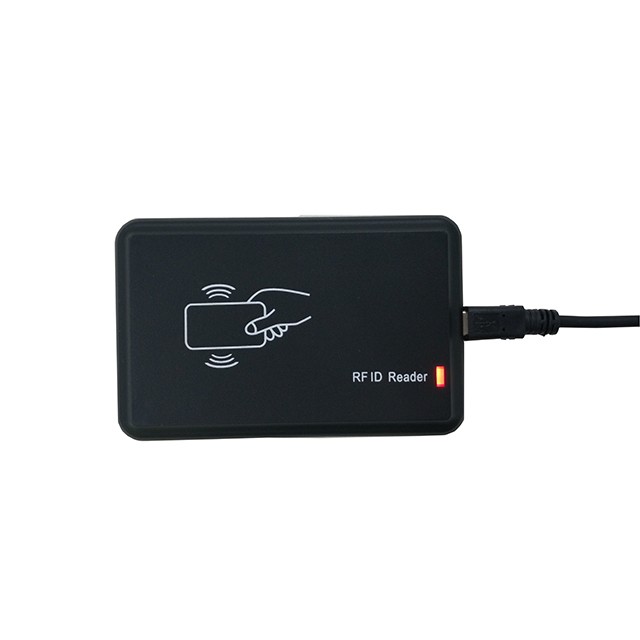

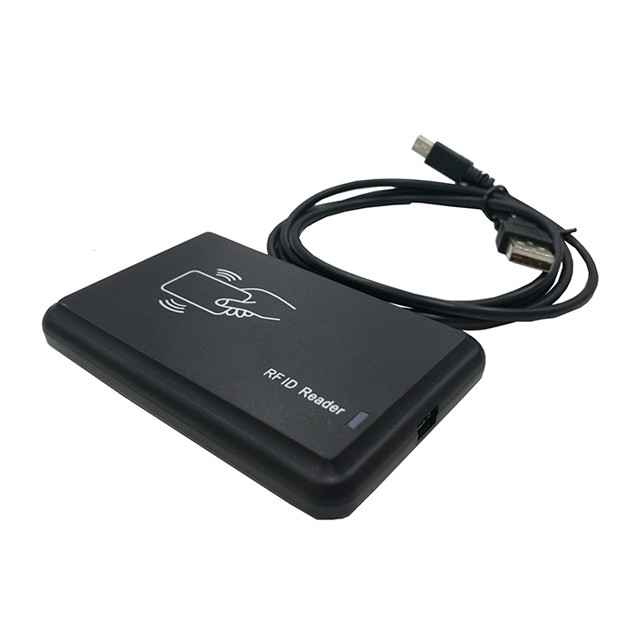

RDM581 125Khz 13.56Mhz USB Reader

RDM581 Frequency 125KHz & 13.56MHz Supporting Card EM4100, Mifare S50 / S70 / Ultralight InterfaceUSB (plug and play, analog keyboard)Output data8H-10D (default) or customizedUSB cable

产品资讯

RDM582 is a 125KHz low-frequency EM4100 card serial number, as well as 13.56MHz high-frequency Mifare one card serial number.USB adopts the no-drive technology, which is plug and play, which is the same as the keyboard input data, greatly improved the speed of entry card information.

Phone：000-000-0000

Detailed information
Specification

RDM581
Frequency	125KHz&13.56MHz
Supporting Card	EM4100, Mifare S50 / S70 / ultralight
Interface	USB (plug and play, analog keyboard)
Output data	8H-10D (default) or customized
USB cable length	1.2 m
Sheathing Material	ABS
Operating Temperature	-10 ℃ ~ +70 ℃
Dimension	105mm70mm12mm

Features：

· Non-drive USB mode, plug and play

· Support read-only EM4100 card serial number

· Support read-only Mifare S50 and S70 card serial number

· A buzzer and A LED indicator light

· Output data format optional (default 8H-10D)

Application:

· Production authentication

· Guest registration system

· Top up

· Logistic systems

· Membership loyalty programme
